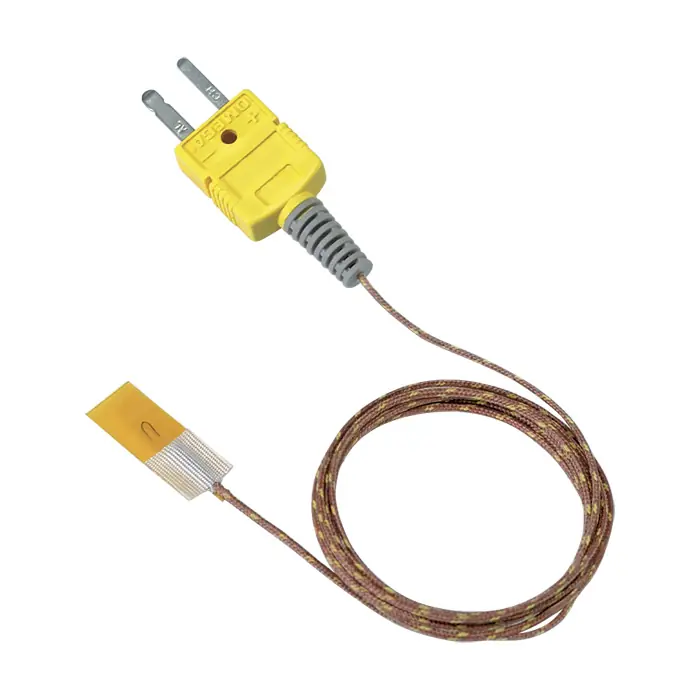

The surface thermocouples probes from the SA1XL series achieves response times of less than 0.15 seconds. This thermocouple is constructed using a Kapton/fibreglass junction insulation along with a fibreglass-insulated lead wire. The SA1XL can be used as a self-adhering thermocouple for temperatures up to 260°C or it can be cemented in place for use at temperatures up to 315°C.
These thermocouples can be used in outdoor and wet environments, including bright sunlight, with little to no effect on performance or accuracy. Our unique construction techniques provides a fast responding thermocouple junction in a thin and flexible mounting pad. These thermocouples are available in 2 styles, stripped #30AWG solid leads, or with a miniature color coded connector.
SPECIFICATIONS:
Thermocouple: ANSI color code J/K/T/E or IEC color code JI/KI/TI/EI
Accuracy: Special limits of error
Junction Type: Ungrounded sensor construction
Polyimide tape base with silicone adhesive and paper peel sheet
Polyimide tape cover
PFA insulated and jacketed 30 AWG cable
Glass filled nylon connector when specified
Temperature Range:
Sensor: -17 to 260°C
Connector: -29 to 180°C
Insulation Resistance: 100 MOhm minimum at 100 Vdc at room temperature and sensor mounted to surface
