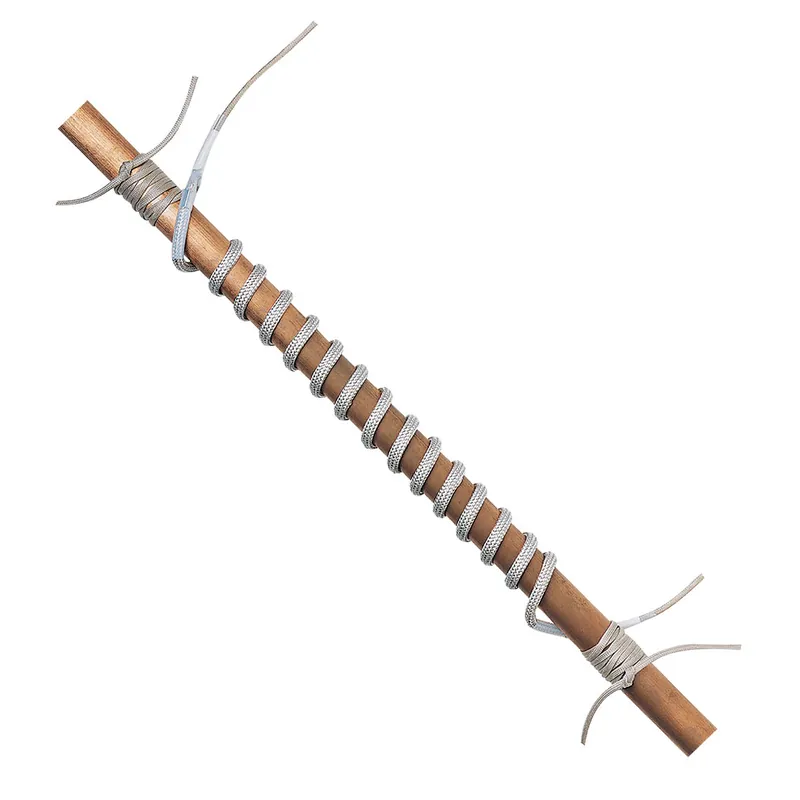

OMEGALUX rope heaters apply heat to tubing with diameters as small as 3.2 mm. Featuring a maximum allowable operating temperature of 482°C, the FGR series rope heaters can be wrapped around either conductive or non-conductive surfaces. Each end terminates with 60 cm long fiberglass insulated lead wire.
These rope heaters are very similar to our heater tapes. Please review our tape heaters for your application needs.
SPECIFICATIONS:
Maximum Allowable Temperature: 482°C (900°F)
Suitable for Use on Conductive Surface: Yes
Resists Moisture, Vapor, Or Chemicals: No
Standard Diameter: 5 mm (3/16 inch)
Voltage: 120 Volt ac or dc, 240V optional
Linear Wattage: 4 Watts/in2 approx.
Heater Length: 3, 6, 8, or 10 feet (0.9, 1.8, 2.4 or 3.0 m)
Lead Length: 24 inches (60 cm)
Termination: Stripped leads
