Popis

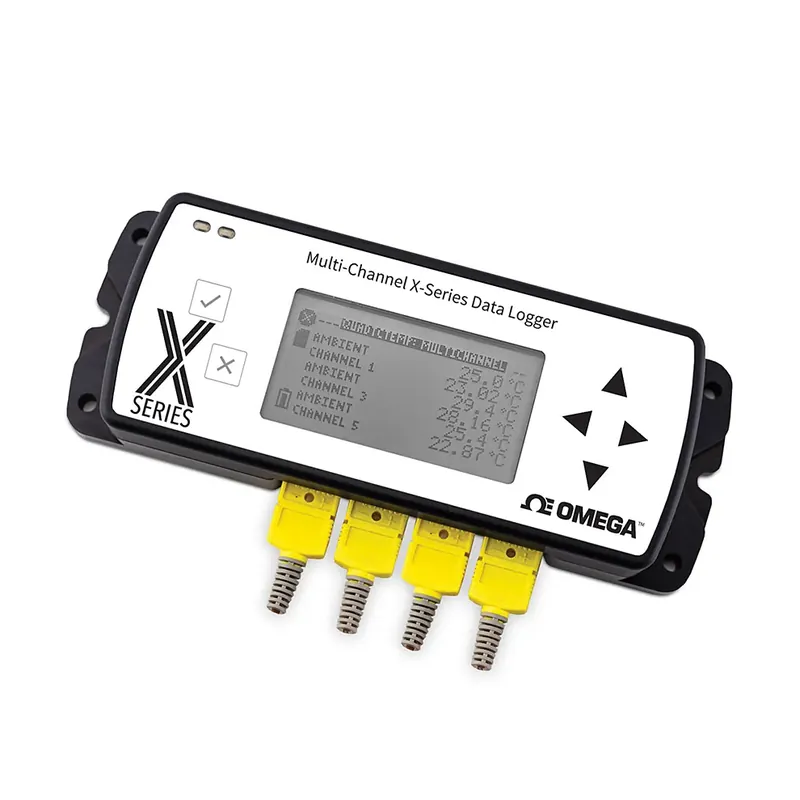

The OM-CP-QUADTCTEMP2000-A2 and OM-CP-OCTTCTEMP2000-A2 are four and eight channel thermocouple data loggers with an LCD screen. The device features on-screen minimum, maximum and average statistics, as well as a user configurable screen that allows for any combination of channels to be displayed. The device accepts J, K, T, E, R, S, B and N type thermocouples.
Dataloggers are ideal for a variety of applications, whether it is remote temperature monitoring, or multiple points in a central location. Data from all channels is simultaneously logged and displayed on-screen for real-time monitoring. It can then be downloaded to a PC for further analysis.
Using the OM-CP Data Logger Software, starting, stopping and downloading from the OM-CP Series data loggers is simple and easy. New models no longer requires the OM-CP-IFC200 communication interface like previous models (connects to the PC directly with a USB cable). Graphical, tabular and statistical data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.
SPECIFICATIONS:
TEMPERATURE
Internal Senzor Temprature Range: -20°C to +60°C
Temprature Resolution: 0.01°C
Calibrated Accuracy: ±0.5°C (0°C to 50°C)
Thermocouple Type: J, K, T, E, R, S, B, N
Input Connection: female subminiature (SMP)
Cold Junction Compensation: automatic, based on internal channel
GENERAL
Memory (All channels enabled):
4-channel: 524,032 readings per channel
8-channel: 262,016 readings per channel
Start Modes: software programmable immediate start or delay start, up to 6 months in advance
Real Time Recording: may be used with PC to monitor and record data in real time
LEDs: 1 per channel and 2 status LEDs
Reading Rate: 4 Hz up to 1 reading every 24 hours
Calibration: digital calibration through software; date automatically recorded within device
Battery: 9V lithium included, user replaceable
Battery Life: 18 months typical with display off; 3 months typical with continuous display use
Data Format: date and time stamped °C,°F, K, °R, mV and V
Time Accuracy: ±1 minute/month
Computer Interface: USB-A to micro USB cable (included); 460,800 baud
Operating System Compatibility: Windows 7/8/10/11
Operating Environment: -20°C to +60°C; 0% RH to 95% RH non-condensing
Dimensions:
4-channel: 65.6 mm × 184.2 mm × 31.0 mm
8-channel: 65.6 mm × 184.2 mm × 42.7 mm
Weight:
4-channel: 435 g
8-channel: 569 g
Enclosure: Black anodized aluminum
Approvals: CE
NOTE: If you are interested in temperature calibration, also buy the appropriate temperature probes for the required number of channels. The device will be calibrated together with the temperature probes as a digital thermometer.
For technical specifications, see the spec sheet in the „Downloads“ section.
