Popis

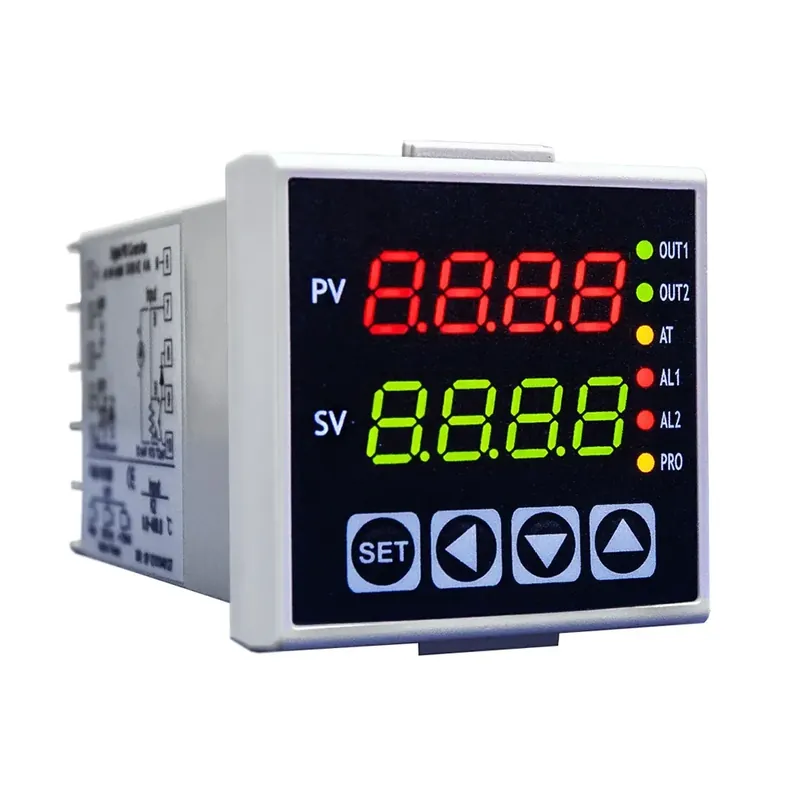

The FU48 series represents a reliable and flexible solution for controlling process variables in industrial applications. This digital temperature PID controller is designed for panel mounting and combines high accuracy, intuitive operation, and broad compatibility with temperature sensors.
Key Features
- PID controlstable and precise control of process variables
- Panel mount design (48×48 mm)compact size for easy integration
- Universal inputssupports standard temperature sensors (thermocouples, Pt100)
- Digital signal processinghigh accuracy and strong immunity to interference
- Clear LED displayeasy setup and monitoring of values
- Alarm functionsconfigurable limits and protection features
Applications
- Industrial furnaces and heating systems
- Packaging and production lines
- Food and chemical industries
- HVAC applications
- Laboratory equipment
Key Benefits
The FU48 offers an ideal balance between performance, simplicity, and cost-effectiveness. It enables precise process control, improves production efficiency, and contributes to consistent output quality.
Configuration:
FU48-111-00X–XX-AW:
Control output 1: yes – relay
Control output 2: yes – relay
Alarm: yes – 1x relay
–
TRS (Linear Output): no
Remote SV: no
Communication: none or RS485
–
Input type and range: select according to your application needs, see the configurator above. The controller will be delivered set according to your choice. The input and range are user-adjustable for thermocouples (K, J, R, S, B, E, N, T, W, PLII, L) or Pt100 resistance thermometers (see the table „Model number generation“ below). This model can only be set to temperature inputs, codes 01 – 17 !!!
–
Power: 85 to 265 Vac
Protection: IP65
The online configurator not contain all available options.
If you do not find what you are looking for, please contact us.
