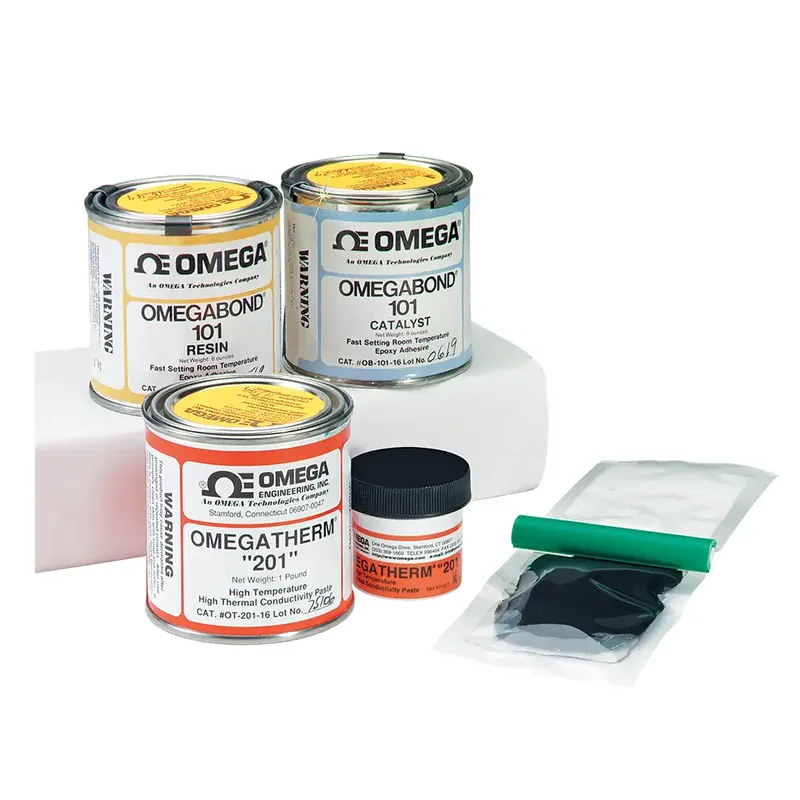

OMEGABOND epoxy and OMEGATHERM thermal conducting paste are high temperature and high thermally conductive epoxies and silicone products. They are specially formulated for permanent bonding of thermocouples, thin film RTDs, thermistors and other temperature sensors, to most surfacesmetals, ceramics, glass, plastics and paper products.
OMEGABOND and OMEGATHERM products are compounded and packaged for convenient, easy mixing and application. Each formulation exhibits important characteristics necessary for accurate, fast, reliable temperature measurement. These are: good adhesion and strength, high temperature rating, high thermal conduction, high electric insulation, thixotropic consistency, fast cure, and easy application.
OMEGABOND is supplied in Twin pak packaging to ensure the user with accurate proportioning of resin and catalyst, as well as to provide a clean, fast means of mixing. The Twin Pak is a flexible, transparent plastic pouch, separated into two isolated compartments by means of a removable external divider. In one compartment is the resin, the other the pre-measured catalyst. To use, remove the divider, mix the two components by kneading the pouch, then snip off a corner to dispense. Each Twin Pak comes with an instruction sheet, enclosed in a clear, heat-sealed plastic envelope.
SPECIFICATIONS:
OMEGABOND 101 Two Part Epoxy: High Thermal Conductivity. Sets at Room Temp. Good to 105°C.
OMEGABOND 200 Two Part Epoxy: Very High Thermal Conductivity. Sets in 2 Hrs at 205°C. Good to 260°C.
OMEGATHERM 201 Silicone Paste: Extremely High Thermal Conductivity. Non-Adhesive. Does not Harden. Good from -40 to 200°C.
