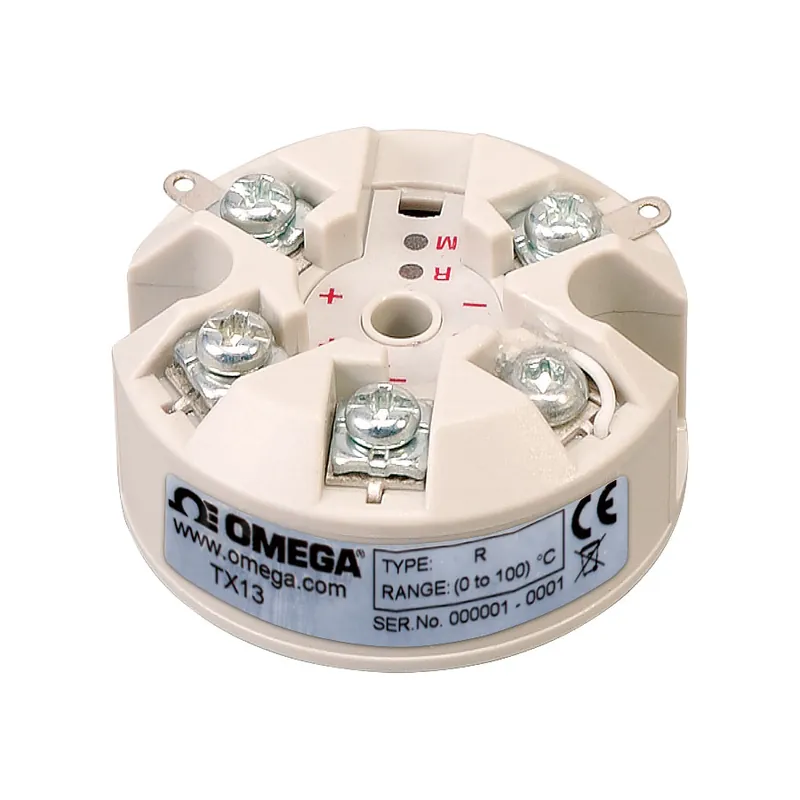

The TX13 in-head mounting thermocouple transmitter converts a thermocouple input over a configured range to a standard industrial (4 to 20 mA) transmission signal. A simple push button operation allows the user to select thermocouple type, burnout direction, select fixed ranges and trim 4 and 20 mA points. The in-head transmitter incorporates the latest digital technology to ensure accurate drift-free performance.
The default factory scaling is for a range of 0 to 1000°C and Type K thermocouple input, with up-scale burnout. Upon request, we will set up a transmitter according to your specifications.
SPECIFICATIONS:
Isolation: Tested to 250 Vdc
Sensor Burnout: Either up or down scale output
Cold Junction:
Range: -40 to 85°C
Accuracy: ±0.5°C
Tracking: ±0.05°C/°C
Stability:
Offset: 0.1°C/°C
Span: 0.05°C/°C
Accuracy@20°C:
| Sensor | Range °C | Input Accuracy |
| K | -200 to 1370 | ±(0.5°C + 0.1% of F.S.) |
| J | -100 to 1200 | |
| E | -200 to 1000 | |
| N | -180 to 1300 | |
| T | -200 to 400 | |
| R | -10 to 1760 | ±(0.5°C + 0.1% of F.S.) over the range 800 to 1600 |
| S | -10 to 1760 | |
| mV | -10 to 70mV | ±0.02% of full scale |
Output Type: 2 wire, 4 to 20 mA sink
Output Connection: Screw terminal
Maximum Output: 21.5 mA (in high burnout condition)
Minimum Output: 3.8 mA (in low burnout condition)
Accuracy: (mA out/2000) or 5 uA (whichever is the greater)
Loop Voltage Effect: 0.2 uA/V
Thermal Drift (from 20°C): ±1 uA/°C typical; ±1.5 uA max
Maximum Output Load: [(Vsupply-10)/20]K (Example: 700 @ 24V)
Environmental
Ambient Operating Range: -40 to 85°C
Ambient Storage Temperature: -50 to 90°C
Ambient Humidity Range: 10 to 90% RH non condensing
Physical Dimensions: 43 mm Dia; 21 mm H
Weight: 31 g (encapsulated)
Update Time: 500 mS
Response Time: 1 second to 90% of final value
Start Up Time: Typically 5 seconds from power up
Warm-Up Time: 1 minute to full accuracy
Power Supply: 10 to 30 Vdc
