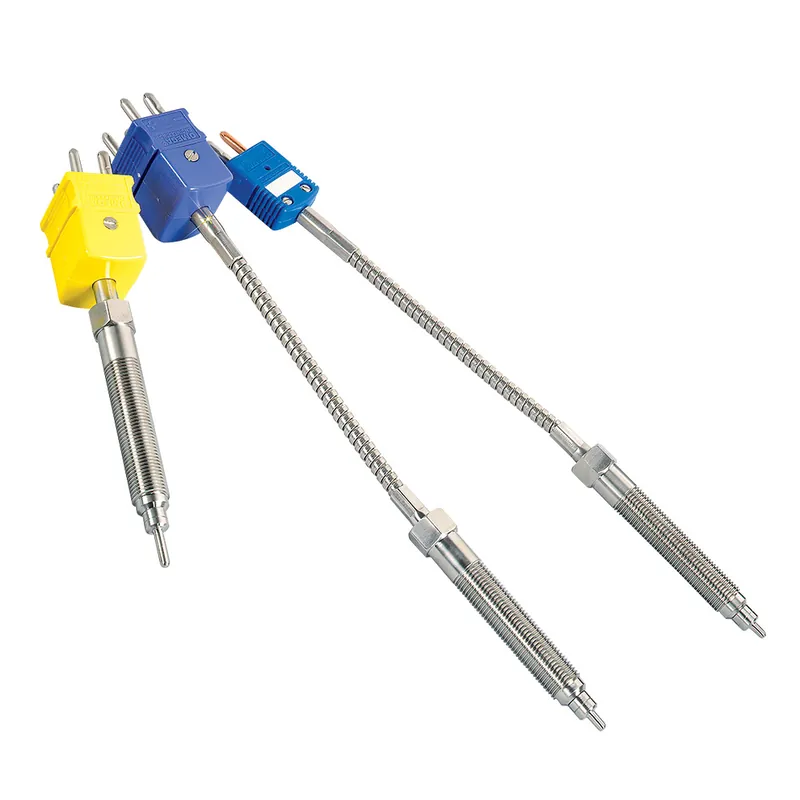

OMEGAs Heavy Duty, Plastic Processing Thermocouples mount directly in extruder heads or die adapters of injection molding machines with sensor tip projected directly into the plastic melt. Immersion lengths, styles and mounting arrangements are available in a wide range of possible configurations. All thermocouples are constructed of Type 316 Stainless Steel.
Dimensions table:
| Style | Dimension „A“ (inches) | Dimension „B“ (inches) |
| 1 | flush | 3 |
| 2 | 1/4 | 3 |
| 3 | 1/2 | 3 |
| 4 | 3/4 | 3 |
| 5 | 1 | 3 |
| 6 | flush | 6 |
| 7 | 1/4 | 6 |
| 8 | 1/2 | 6 |
| 9 | 3/4 | 6 |
| 10 | 1 | 6 |
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
Advantages of the dual design:
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
Complete informations can be found in the spec sheet (PDF), see the „Download“ section.
Option :
(1)-(2)-(3)
(1) Assembly Style select from:
TEFE for Dual Element Flexible Extension with DTC Connector
TERP for Dual Element Rigid Plug with DTC Connector
SERP for Single Element Rigid Plug with OST Connector
SEFE for Single Element Flexible Extension with OST Connector
(2) Calibration select from:
J for J type thermocouple
K for K type thermocouple
T for T type thermocouple
E for E type thermocouple
(3) Dimension/Size select from:
1 for Dimension Style 1
2 for Dimension Style 2
3 for Dimension Style 3
4 for Dimension Style 4
5 for Dimension Style 5
6 for Dimension Style 6
7 for Dimension Style 7
8 for Dimension Style 8
9 for Dimension Style 9
10 for Dimension Style 10
Note: All combinations may not be valid, check spec sheet for valid part numbers.
